Description

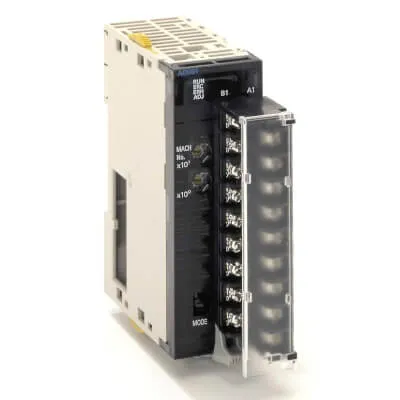

The Omron CJ1W-AD081-V1 is a high-precision analog input unit designed for the CJ-series I/O system. It provides 8 analog input channels supporting multiple signal types including voltage (-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V) and current (4 to 20 mA), making it highly versatile for industrial automation applications.
With a 13-bit resolution (1:4000 / 8000) and a conversion time of 4000 ms per unit, it ensures accurate and stable data acquisition. The unit features a screw terminal connection for secure wiring and is compact in size for easy panel integration.
Ideal for process control, monitoring, and machine automation, the CJ1W-AD081-V1 enables reliable input of analog signals into Omron CJ-series PLCs.
Specifications
| Category | Details |
|---|---|
| I/O System | CJ I/O Bus |
| Expansion unit type | Special I/O Unit |
| Type of module | Analog I/O |
| Analog inputs | 8 |
| Analog input types | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution | 13 Bit (1:4000 / 8000) |
| Analog outputs | None |
| Conversion time | 4000 ms/unit |
| I/O connection type | Screw terminal |
| Number of connectors | 1 |
| Dimensions (H x W x D) | 90 x 31 x 89 mm |
| Weight | 0.150 kg |
