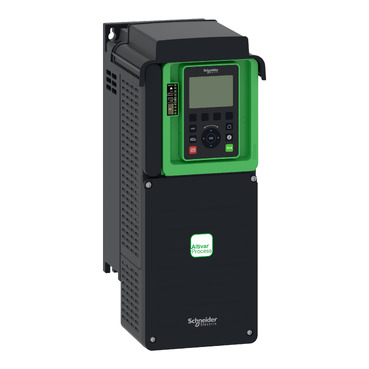

Altivar Process Variable Speed Drive – ATV630U75N4
The Schneider Electric Altivar Process ATV630 is a 7.5kW (10HP) variable speed drive designed for process and utility applications. Suitable for both asynchronous and synchronous motors, it features integrated Ethernet and Modbus communication, energy-saving functions, and compact wall-mountable design.
Original price was: $1 262.15.$1 204.02Current price is: $1 204.02.
(Save $58.13)
In stock
Description
The Altivar Process ATV630 Variable Speed Drive is a high-performance drive engineered by Schneider Electric to meet the demanding needs of process and utility industries. Designed to power 3-phase synchronous and asynchronous motors, it delivers reliable control with support for both light and heavy overloads.
With a power rating of 7.5kW (10HP) and a supply voltage range of 380–480V AC, this drive is ideal for applications such as water and wastewater management, mining, oil and gas, and food and beverage processing. The innovative “Stop and Go” standby mode offers up to 30% energy savings, reducing operational costs without additional hardware.
Equipped with 3 built-in RJ45 ports, including 1 Ethernet and 2 serial Modbus ports, the ATV630 ensures seamless integration into industrial networks. Compact in size and wall-mountable, this UL Type 1 / IP21 rated drive provides extensive functionality with optional accessories and expansion modules.
Whether your focus is asset management, energy optimization, or operational efficiency, the ATV630 brings advanced performance to every level of your process.
Specifications
| Attribute | Details |
|---|---|
| Product Range | Altivar Process ATV600 |
| Model | ATV630 |
| Power Rating | 7.5 kW (10 HP) |
| Rated Voltage | 380–480V AC |
| Mounting Type | Wall mount (Vertical ±10°) |
| Motor Compatibility | 3-phase synchronous & asynchronous |
| Overload Capacity | 120% (light load), 150% (heavy load) |
| Ingress Protection | IP21 (UL Type 1) |
| Communication Protocols | Ethernet, Modbus Serial, Modbus TCP |
| Built-in Ports | 3 x RJ45 (1 Ethernet, 2 Serial) |
| Energy Saving Feature | Up to 30% (via Stop and Go function) |
| Application Focus | Fluids processing, energy efficiency |
| Industry Suitability | Water, Wastewater, Mining, Oil & Gas, F&B |
| Width | 171 mm (6.7 in) |
| Height | 409 mm (16.1 in) |
| Depth | 233 mm (9.2 in) |
| Weight | 7.7 kg (17.0 lb) |
| Accessories (Optional) | Fan kits, display terminals, I/O modules, filters |
Additional information
| Weight | 7.7 kg |
|---|---|
| Dimensions | 233 × 171 × 409 mm |
