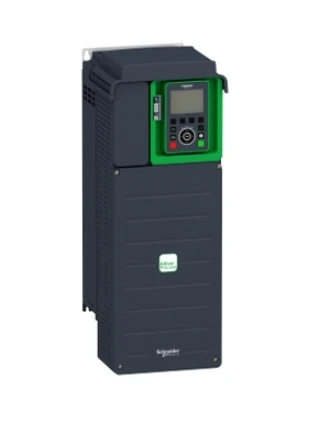

Altivar Process ATV930 Variable Speed Drive – ATV930D30N4
Altivar Process ATV930 Variable Speed Drive (ATV930D30N4) – 30kW, 40HP, 380–480V, IP21, with integrated braking unit and advanced connectivity for high-performance industrial process applications.
Original price was: $3 160.88.$2 995.60Current price is: $2 995.60.
(Save $165.28)
In stock
Description
The Altivar Process ATV930D30N4 is a high-performance variable speed drive (VSD) tailored for advanced industrial process control. Supporting both synchronous and asynchronous motors, it delivers optimal performance for motors rated up to 30kW (40HP) in light overload (120%) and 22kW (30HP) in heavy overload (150%) scenarios.
Operating on a 3-phase 380–480V AC supply, this drive is equipped with an integrated braking unit and designed to minimize downtime with features such as built-in web server, data logging, and EtherNet/IP and Modbus TCP connectivity. It excels in harsh industrial sectors like oil & gas, mining, water treatment, and food processing, offering precision control and reliable communication across automation architectures.
The drive is IP21 rated for indoor panel-mounted environments and should be installed in a vertical position for optimal performance. Its robust design and advanced diagnostics contribute to reduced maintenance, efficient operation, and increased equipment lifespan.
Specifications
| Specification | Details |
|---|---|
| Product Name | Variable Speed Drive |
| Model Number | ATV930D30N4 |
| Series | Altivar Process ATV900 |
| Motor Compatibility | Synchronous and Asynchronous Motors |
| Motor Power (Light Overload) | 30 kW / 40 HP |
| Motor Power (Heavy Overload) | 22 kW / 30 HP |
| Input Voltage | 3-phase, 380–480 V AC |
| Integrated Braking Unit | Yes |
| Enclosure Rating | IP21 |
| Mounting Orientation | Vertical (±10°) |
| Communication Protocols | Modbus TCP, EtherNet/IP |
| Features | Built-in web server, data logging, advanced process control |
| Width | 226 mm (8.9 in) |
| Height | 673 mm (26.5 in) |
| Depth | 274 mm (10.8 in) |
| Net Weight | 28 kg (61.7 lb) |
Additional information
| Weight | 28 kg |
|---|---|
| Dimensions | 226 × 274 × 673 mm |
