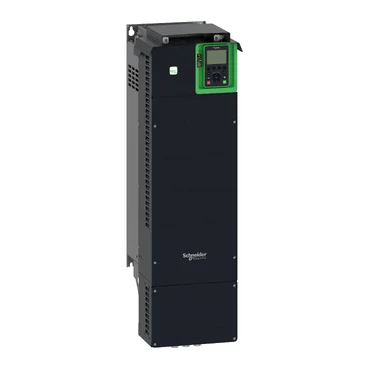

Altivar Process ATV600 Variable Speed Drive – ATV630D55N4
Altivar Process ATV630 Variable Speed Drive, 55kW (75hp), 3-phase, 380–480V, IP21. Designed for fluid and energy management in process industries with built-in Ethernet and Modbus communication capabilities.
Original price was: $4 337.18.$4 137.44Current price is: $4 137.44.
(Save $199.74)
In stock
Description
The Altivar Process ATV630 variable speed drive is designed for 3-phase synchronous and asynchronous motors operating in demanding process and utility applications. With a power capacity of up to 55kW (75 hp) and a voltage range of 380 to 480V AC, this drive meets the needs of high-efficiency systems across industries such as water and wastewater, oil and gas, mining, and food and beverage.
This model features a robust IP21 / UL Type 1 enclosure and includes three RJ45 communication ports, one Ethernet port, and two serial ports, offering seamless integration into existing systems. The innovative Stop and Go function provides up to 30% energy savings in standby mode, reducing operational costs without additional components.
It supports slight overloads (up to 120%) for motors rated at 55kW and significant overloads (up to 150%) for motors rated at 45kW. Accessories and options—such as fan kits, graphic display terminals, I/O expansion, communication modules, and EMC input filters—are available depending on the drive rating.
The ATV630 is built to enhance equipment efficiency, asset and energy management, and overall process performance, while maintaining a compact, wall-mounted form factor. It is fully compatible with Schneider Electric’s process automation architecture, making it a strategic component in energy-saving and performance-optimized systems.
Specifications
| Feature | Details |
|---|---|
| Product Range | Altivar Process ATV600 |
| Device Short Name | ATV630 |
| Product Type | Variable Speed Drive |
| Application | Process and Utilities |
| Variant | Standard Version |
| Rated Power (Slight Overload) | 55 kW / 75 hp |
| Rated Power (Heavy Overload) | 45 kW / 60 hp |
| Rated Voltage | 380 – 480 V AC |
| Phases | 3-phase |
| Enclosure Rating | IP21 / UL Type 1 |
| Mounting Mode | Wall Mount (Vertical ±10°) |
| Control Features | Stop and Go (30% standby energy savings) |
| Communication Protocols | Ethernet, Modbus Serial, Modbus TCP |
| Ports | 3 x RJ45, 1 x Ethernet, 2 x Serial |
| Width | 290 mm (11.4 in) |
| Height | 922 mm (36.3 in) |
| Depth | 323 mm (12.7 in) |
| Net Weight | 56.5 kg (124.6 lb) |
| Available Accessories | Fan kit, Graphic display, I/O/Comm modules, EMC filters |
| Target Applications | Water, Wastewater, Oil & Gas, Mining, F&B |
Additional information
| Weight | 56.5 kg |
|---|---|
| Dimensions | 323 × 290 × 922 mm |
