Description

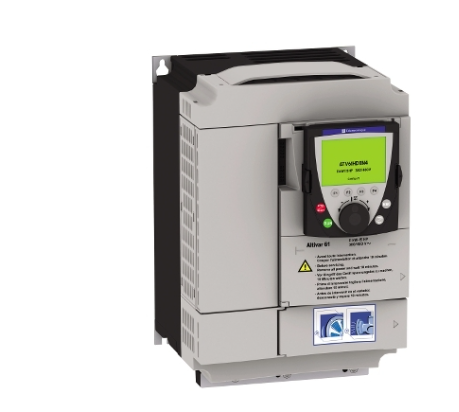

The Schneider Electric ATV61HD15N4 Altivar 61 variable speed drive is a high-performance solution specifically designed for pumping and ventilation applications. With a rated motor power of 15 kW (20 HP) and operating on a 3-phase 380–480 V supply, it ensures efficient motor control, energy savings, and process optimization in industrial environments.
Engineered for HVAC systems, fans, and pump applications, the Altivar 61 series provides advanced motor control functions that enhance system reliability while reducing energy consumption. Its built-in EMC filter ensures compliance with electromagnetic compatibility standards, minimizing interference with other equipment.
The drive comes equipped with a graphic terminal, offering an intuitive user interface for easy configuration, monitoring, and diagnostics. This enhances user experience and reduces commissioning time, making it suitable for both new installations and system upgrades.
With a robust IP20-rated enclosure and a compact yet sturdy design, the ATV61HD15N4 is ideal for panel mounting in industrial control systems. Its durability and performance make it a dependable choice for continuous operation in demanding environments.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Variable Speed Drive |
| Model | ATV61HD15N4 |
| Series | Altivar 61 |
| Brand | Schneider Electric |
| Rated Motor Power | 15 kW |
| Motor Power (HP) | 20 HP |
| Supply Voltage | 380 – 480 V AC |
| Supply Phase | 3-Phase |
| Application | Pumps, Ventilation (HVAC) |
| EMC Filter | Built-in |
| User Interface | Graphic Terminal |
| Protection Rating | IP20 |
| Width | 230 mm |
| Height | 400 mm |
| Depth | 213 mm |
| Net Weight | 22 kg |
