Description

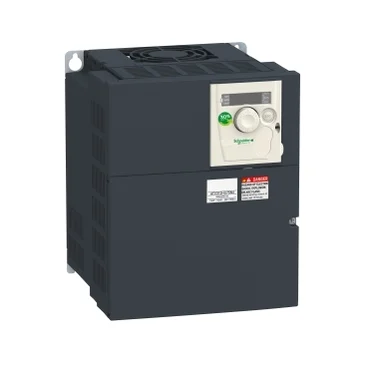

The Altivar 312 ATV312HU75N4 is a compact and reliable variable speed drive designed for controlling asynchronous motors in simple machine applications such as materials handling, packaging, textile machinery, special machines, pumps, and fans.
With a rated motor power of 7.5 kW (10 HP) and an output capacity of 18 kVA, this drive operates with a 3-phase supply voltage from 380 V to 500 V (tolerance -15% to +10%) and supply frequency of 50–60 Hz.
Its compact 180 mm width allows for flexible installation on a mounting plate. It features a snap-lock seal for secure closure, bright LED 4-digit display for clear visibility, jog dial navigation for intuitive operation, and an integrated EMC filter for compliance with electromagnetic compatibility requirements.
The ATV312HU75N4 is also SoMove software compatible, enabling quick configuration, backup, and transfer of settings, reducing downtime during maintenance or replacement.
Specifications
| Parameter | Value |
|---|---|
| Part Number | ATV312HU75N4 |
| Range of Product | Altivar 312 |
| Product or Component Type | Variable Speed Drive |
| Product Destination | Asynchronous motors |
| Product Specific Application | Simple machines |
| Assembly Style | With heat sink |
| Component Name | ATV312 |
| Motor Power (kW) | 7.5 kW |
| Motor Power (HP) | 10 HP |
| Rated Output Power | 18 kVA |
| Rated Output Voltage | 380…500 V (-15% to +10%) |
| Supply Frequency | 50…60 Hz (-5% to +5%) |
| Network Number of Phases | 3 phases |
| Integrated EMC Filter | Yes |
| Display Type | LED 4-digit |
| Navigation Control | Jog dial |
| SoMove Software Compatible | Yes |
| Height | 232 mm |
| Width | 180 mm |
| Depth | 172 mm |
| Net Weight | 6.5 kg |
