Description

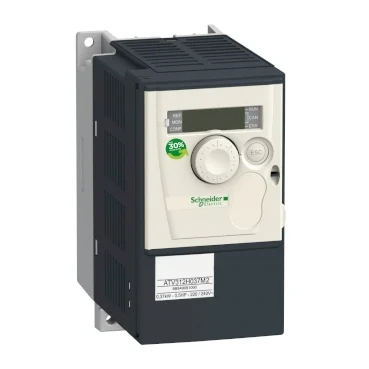

The Altivar 312 ATV312H037M2 is a high-performance, compact variable speed drive designed for controlling asynchronous motors in simple machine applications such as pumps, fans, conveyors, textile machinery, and material handling systems.
This drive delivers 0.37 kW (0.5 HP) of motor power with an apparent power rating of 1 kVA, operating on a single-phase 200–240 V AC supply with ±15% voltage tolerance. It offers integrated EMC filtering, a snap-lock seal, fault and status indicators, and a jog dial navigation button for straightforward operation.
The bright LED 4-digit display ensures high visibility of parameters, and compatibility with SoMove software enables quick configuration, backup, and transfer of settings, reducing downtime. The slim 72 mm width makes it ideal for mounting in space-restricted enclosures, either on a plate or panel.
Specifications
| Attribute | Value |
|---|---|
| Part Number | ATV312H037M2 |
| Range | Altivar 312 |
| Product Type | Variable Speed Drive |
| Application | Simple machine motor control |
| Motor Power (kW) | 0.37 kW |
| Motor Power (HP) | 0.5 hp |
| Rated Supply Voltage | 200–240 V AC, -15% to +10% |
| Supply Frequency | 50–60 Hz, ±5% |
| Number of Phases | Single phase |
| Line Current | 5.3 A at 200 V, 4.4 A at 240 V |
| Short Circuit Withstand (Isc) | 1 kA |
| EMC Filter | Integrated |
| Apparent Power | 1 kVA |
| Maximum Transient Current | 5 A for 60 s |
| Power Dissipation | 41 W at nominal load |
| Speed Range | 1…50 |
| Height | 145 mm |
| Width | 72 mm |
| Depth | 132 mm |
| Net Weight | 1.5 kg |
