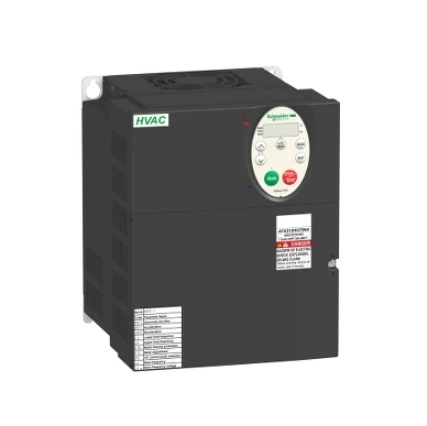

Altivar 212 Variable Speed Drive – ATV212HD11N4
Schneider Electric ATV212HD11N4 Variable Speed Drive, 11kW, 480V, 3-Phase, EMC Filter, IP21 is an energy-efficient drive designed for HVAC and fluid management applications in commercial buildings.
Original price was: $957.78.$907.70Current price is: $907.70.
(Save $50.08)
In stock
Description
The ATV212HD11N4 from Schneider Electric is a high-performance 11kW (15HP) variable speed drive built specifically for HVAC and fluid management systems in commercial and tertiary buildings. Designed to power 3-phase asynchronous motors, this unit operates at a rated voltage of 380V to 480V AC and offers IP21 protection with a built-in EMC filter for minimized electrical interference.
What sets the Altivar 212 apart is its eco-energy performance, delivering up to 70% energy savings over traditional control systems. With cable temperature rise reduction technology, it ensures seamless startup without the need for additional accessories like line or DC chokes. The unit is compact and mounts vertically on a panel, making it ideal for HVAC applications such as air conditioning, ventilation, and water pumping.
Fully compliant with international standards like IEC/EN 61800-5-1 and IEC/EN 61800-3, the ATV212HD11N4 is also CE, UL, CSA, and RoHS certified, and supports Modbus, BACnet, METASYS N2, and APOGEE FLN P1 communication protocols for easy BMS (Building Management System) integration. Optional motor chokes further enhance its versatility and cable length compatibility.
Specifications
| Specification | Details |
|---|---|
| Model | ATV212HD11N4 |
| Brand | Schneider Electric |
| Series | Altivar 212 |
| Product Type | Variable Speed Drive |
| Power Rating | 11 kW (15 HP) |
| Rated Voltage | 380 – 480 V AC |
| Phase Type | 3-phase |
| Motor Type Supported | Asynchronous motors |
| Protection Rating | IP21 |
| Integrated EMC Filter | Yes |
| Energy Saving Efficiency | Up to 70% |
| Certifications | CE, UL, CSA, C-Tick, NOM, RoHS, WEEE |
| Compliance Standards | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN P1 |
| Mounting Orientation | Vertical (±10°), panel mount |
| Optional Accessories | Motor chokes |
| Application Area | HVAC systems: Heating, Ventilation, Air Conditioning, Pumps |
| Height | 232 mm |
| Width | 180 mm |
| Depth | 170 mm |
| Net Weight | 6.45 kg |
Additional information
| Weight | 6.45 kg |
|---|---|
| Dimensions | 232 × 180 × 170 mm |
