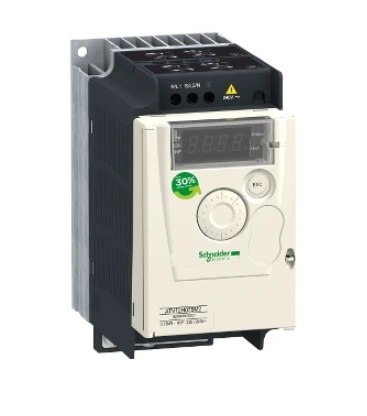

Altivar 12 Variable Speed Drive – ATV12H037M2
Altivar 12 Variable Speed Drive, 0.37kW (0.55HP), 200–240V single-phase input, compact build with heatsink for HVAC and basic machine control.
Original price was: $211.39.$200.33Current price is: $200.33.
(Save $11.06)
In stock
Description
The Schneider Electric Altivar 12 (ATV12H037M2) is a space-saving variable speed drive tailored for 0.37kW / 0.55HP motors, operating on single-phase 200–240V AC input. Designed with an integrated heatsink, this compact drive is ideal for normal operating environments, ensuring reliable thermal management in continuous operation.
Optimized for simple machine applications, it supports a wide range of equipment including conveyors, fans, extractors, access barriers, and treadmills. It features PID control, catch-on-the-fly, and energy optimization functions that help achieve up to 30% energy savings in ventilation and pumping systems.
The drive includes Modbus communication protocol as standard and is compatible with SoMove software, enabling fast configuration, parameter backup, and efficient maintenance. With global standard certifications (IEC, UL), and easy wiring and setup, the ATV12H037M2 is a robust and cost-effective solution for light-duty motor control.
Specifications
| Feature | Details |
|---|---|
| Product Model | ATV12H037M2 |
| Range | Altivar 12 |
| Rated Power | 0.37 kW / 0.55 HP |
| Input Voltage | 200–240V AC (Single-phase) |
| Output Voltage | 3-phase (to motor) |
| Cooling Method | With heatsink (fan-cooled) |
| Functions | PID control, catch on the fly, energy saving |
| Communication Protocol | Modbus (integrated) |
| Software Compatibility | SoMove |
| Conformity Standards | IEC, UL, and others |
| Typical Applications | HVAC, conveyors, extractors, access barriers |
| Width | 72 mm |
| Height | 143 mm |
| Depth | 121.2 mm |
| Net Weight | 0.7 kg |
Additional information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 72 × 143 × 121.2 mm |
