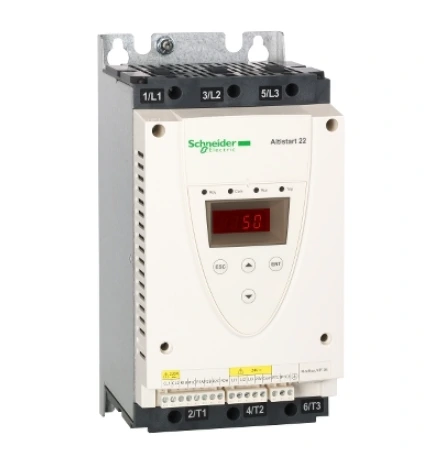

Altistart 22 Soft Starter – ATS22D17Q
Schneider Electric Altistart 22 Soft Starter ATS22D17Q – 17A, 230–440V | Motor Power: Up to 15kW Compact soft starter for 3-phase motors. Ideal for low-power applications with integrated bypass and smooth motor control.
Original price was: $595.40.$564.27Current price is: $564.27.
(Save $31.13)
In stock
Description
The Altistart 22 ATS22D17Q from Schneider Electric is a space-saving and efficient soft starter designed for controlling 3-phase asynchronous motors in supply line connection. With a current rating of 17 A, it supports motor powers up to 7.5 kW (400–440V supply line) or 15 kW (440V delta connection).
Tailored for both basic and complex machinery—including centrifugal and piston pumps, fans, compressors, and material handling systems—the ATS22D17Q helps protect your equipment by delivering a smooth start-up and shutdown, reducing mechanical stress and extending equipment life.
Its integrated bypass contactor minimizes heat dissipation and operational noise. The compact footprint makes it ideal for tight cabinet installations, and compatibility with SoMove software simplifies configuration and quick spare replacement.
Lightweight and easy to install, the Altistart 22 ATS22D17Q is a cost-effective choice for efficient motor control in smaller industrial applications.
Specifications
| Specification | Details |
|---|---|
| Model | ATS22D17Q |
| Brand | Schneider Electric |
| Product Series | Altistart 22 |
| Product Type | Soft Starter |
| Rated Operational Current | 17 A |
| Motor Power (230 V) | Up to 4 kW |
| Motor Power (400–440 V) | Up to 7.5 kW (Supply Line) / 15 kW (Delta) |
| Supply Voltage Range | 230–440 V AC |
| Control Supply Voltage | 220 V AC |
| Applications | Pumps, Fans, Compressors, Material Handling |
| Connection Options | In-line (Supply Line) / Inside Delta |
| Bypass | Integrated |
| Software Compatibility | SoMove |
| Dimensions (W x D x H) | 130 mm x 169 mm x 265 mm |
| Weight | 7 kg |
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 130 × 169 × 265 mm |
