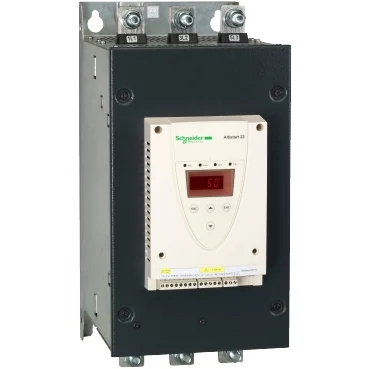

Altistart 22 Soft Starter, – ATS22C41Q
High-performance soft starter for 3-phase asynchronous motors, delivering smooth torque-controlled starts up to 220 kW, reducing mechanical stress and extending equipment life.
Original price was: $3 347.11.$3 192.96Current price is: $3 192.96.
(Save $154.15)
In stock
Description
The Altistart 22 ATS22C41Q is a durable and efficient soft starter designed for controlling 3-phase asynchronous motors in both supply line and delta connection configurations. With a rated current of 410 A and motor power ratings up to 220 kW (400–440 V supply line) or 355 kW (440 V in motor delta connection), it is ideal for demanding industrial applications such as centrifugal and piston pumps, fans, screw compressors, and material handling systems.
Its integrated bypass reduces noise and heat dissipation, improving efficiency and prolonging operational life. The unit features torque-controlled starting with a current limit of 3.5 In, ensuring smooth acceleration while protecting mechanical components.
The slim form factor allows for easy integration into a variety of machine frames, while SoMove software compatibility simplifies configuration, parameter transfer, and commissioning. Built for AC-53A utilization, it delivers both performance and reliability in complex or simple machine setups.
Specifications
| Attribute | Value |
|---|---|
| Part Number | ATS22C41Q |
| Range | Altistart 22 |
| Product Type | Soft Starter |
| Application | Pumps, fans, compressors, material handling |
| Motor Type | Asynchronous motors |
| Rated Supply Voltage | 230–440 V AC, -15% to +10% |
| Control Voltage | 230 V |
| Number of Phases | 3 phases |
| Rated Current | 410 A |
| Motor Power (230 V) | 110 kW |
| Motor Power (400 V) | 220 kW |
| Motor Power (440 V) | 220 kW (supply line) / up to 355 kW (delta connection) |
| Factory Setting Current | 388 A |
| Power Dissipation | 177 W (standard applications) |
| Utilisation Category | AC-53A |
| Start Type | Torque control, current limited to 3.5 In |
| Height | 425 mm |
| Width | 206 mm |
| Depth | 299 mm |
| Net Weight | 33 kg |
Additional information
| Weight | 33 kg |
|---|---|
| Dimensions | 299 × 206 × 425 mm |
