Description

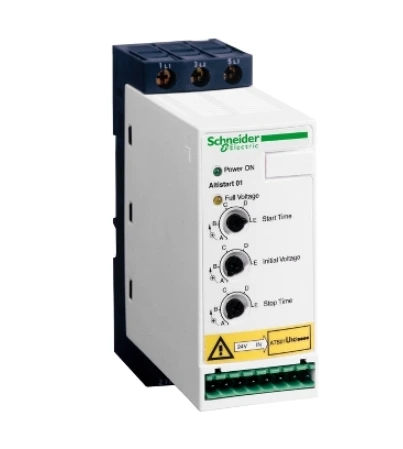

The Schneider Electric ATS01N222QN from the Altistart 01 series is a high-performance, compact soft starter designed to provide a controlled, smooth start for 3-phase asynchronous motors rated up to 22 A and 7.5 to 11 kW at 380–415 V AC.
Engineered for simplicity and efficiency, this DIN rail-mounted device is just 45 mm wide, making it one of the most compact soft starters in its class—ideal for control panels with space constraints. With only two setting dials, users can easily configure motor starting without needing deep technical expertise.
The built-in integrated bypass improves energy efficiency by reducing heat dissipation and eliminating the need for external bypass contactors. This reduces noise and extends the lifespan of both the soft starter and the motor by minimizing mechanical stresses during motor start-up.
With reliable motor protection and a compact design, ATS01N222QN ensures operational safety, longevity, and smooth performance in a wide range of applications.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Series | Altistart 01 |
| Model Number | ATS01N222QN |
| Product Type | Soft Starter |
| Motor Type | 3-phase asynchronous motors |
| Rated Operational Voltage | 380–415 V AC |
| Rated Current | 22 A |
| Motor Power Rating | 7.5 to 11 kW (at 380–415 V AC) |
| Installation Type | DIN rail mounted |
| Width | 45 mm |
| Height | 154 mm |
| Depth | 131 mm |
| Net Weight | 0.56 kg |
