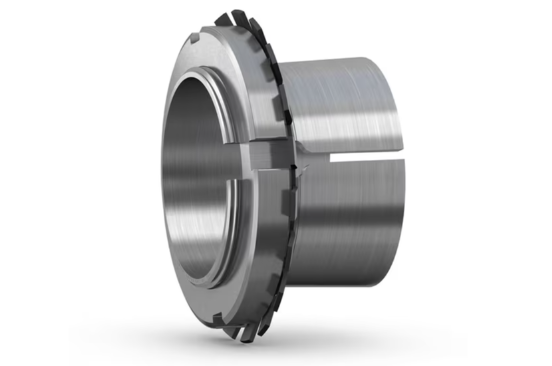

Adapter Sleeve – H 313

The H 313 Adapter Sleeve is designed for efficient and secure mounting of tapered bore bearings onto plain or stepped cylindrical shafts. Featuring a bore diameter of 2.362 inches (60mm equivalent) and M65x2 thread designation, it ensures stable alignment and secure fastening. The 1:12 taper enhances compatibility with standard bearings. This adapter sleeve is supplied complete with a KM lock nut and MB lock washer, making installation simple and ensuring a reliable, vibration-resistant fit for industrial applications.

Specification

• Model: H 313

• Bore Diameter: 2.362 in (60 mm)

• Width: 1.969 in (50 mm)

• Thread Designation: M65x2

• Taper: 1:12

• Oil Injection Holes: No

• Components Included: KM lock nut, MB lock washer

• Net Weight: 0.9546 lb (0.433 kg)
