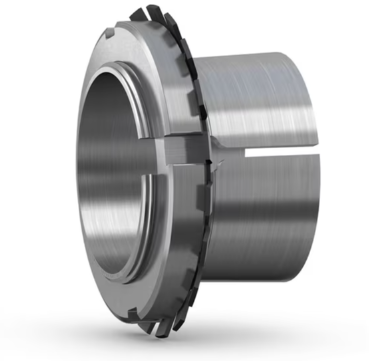

Adapter Sleeve – H 312

The H 312 Adapter Sleeve is an essential solution for mounting bearings with a tapered bore onto plain or stepped shafts. With a 55 mm bore diameter, M60x2 thread designation, and a 1:12 taper, this adapter sleeve ensures a firm and accurate fit. It comes pre-equipped with a KM lock nut and MB lock washer, offering enhanced stability and security. Designed for easy installation, this component is ideal for industrial applications requiring precision and durability.

Specification

• Model: H 312

• Bore Diameter: 55 mm

• Width: 47 mm

• Thread Designation: M60x2

• Taper: 1:12

• Oil Injection Holes: No

• Components Included: KM lock nut, MB lock washer

• Net Weight: 0.374 kg
