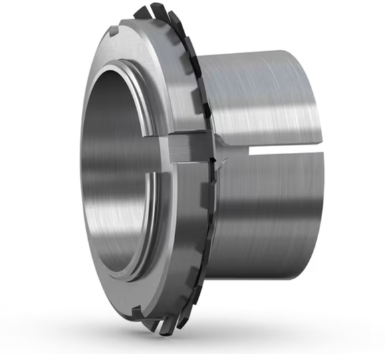

Adapter Sleeve – H 215

The H 215 Adapter Sleeve is a versatile and durable component designed for mounting bearings with a tapered bore onto cylindrical shafts. It features a 65 mm bore diameter, M75x2 thread designation, and a 1:12 taper, ensuring a secure and precise fit. This adapter sleeve comes pre-equipped with a KM lock nut and MB lock washer, making installation simple and efficient. Ideal for industrial applications, the H 215 ensures long-lasting performance with minimal maintenance.

Specification

• Model: H 215

• Bore Diameter: 65 mm

• Width: 43 mm

• Thread Designation: M75x2

• Taper: 1:12

• Oil Injection Holes: No

• Components Included: KM lock nut, MB lock washer

• Net Weight: 0.74 kg
