Description

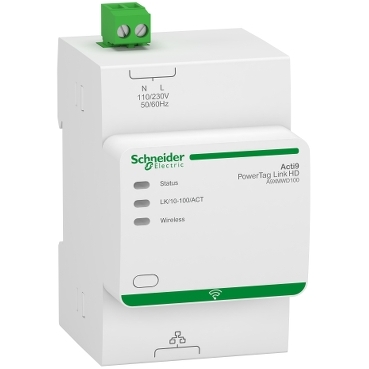

The Acti9 PowerTag Link HD is a high-performance smart communication module designed to enable real-time energy monitoring and circuit diagnostics within electrical distribution systems.
When associated with PowerTag wireless energy sensors, it provides detailed monitoring down to the load level, supporting energy management, preventive maintenance, and system optimization. It serves as a Wireless-to-Modbus TCP/IP concentrator, allowing seamless integration of wireless sensor data into industrial Ethernet networks and building or energy management systems.
This device is part of the Acti9 range, ensuring compatibility with modern modular electrical installations.
Its compact DIN-rail design makes it suitable for installation in electrical panels and distribution boards.
Specifications
| Feature | Specification |
|---|---|
| Product Code | A9XMWD100 |
| Product Name | Acti9 PowerTag Link HD |
| Device Short Name | PowerTag Link HD |
| Range | Acti9 |
| Product Type | Smart Communication Module |
| Function | Wireless to Modbus TCP/IP Concentrator |
| Interfaces | 1 Wireless, 1 Industrial Ethernet |
| Supply Voltage | 110–230 VAC |
| Frequency | 50/60 Hz |
| Connection Type | Screw connection |
| Protection Degree | IP20 (IP40 in modular enclosure) |
| Pollution Degree | 2 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Standards | IEC/EN 61131-2 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 67.5 mm |
| Weight | 187 g |
