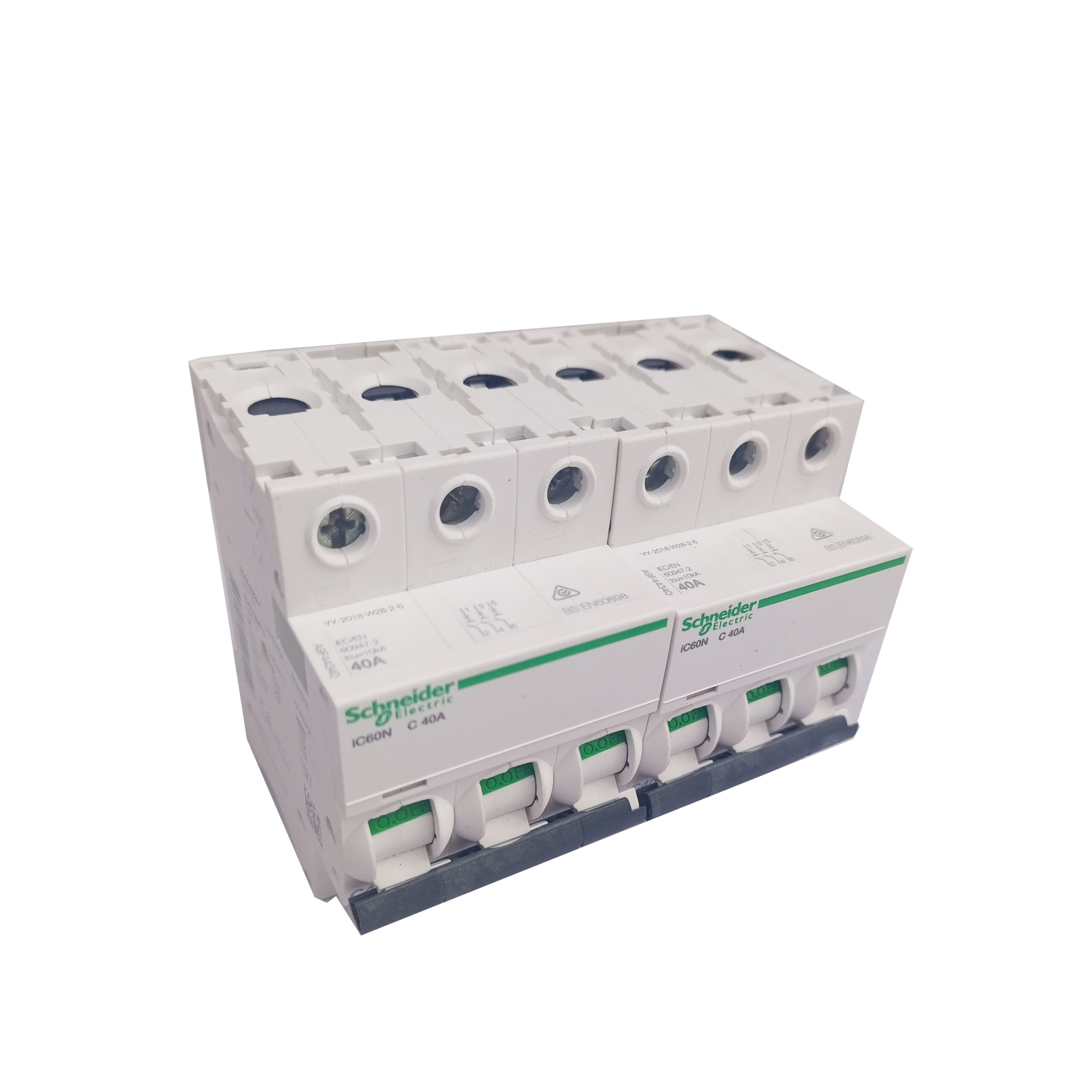

Acti9 iC60N 3P 40A C Miniature Circuit Breaker – A9F44340

The Acti9 iC60N Miniature Circuit Breaker (MCB) is a high-performance solution designed for industrial and residential electrical protection. With a 3-pole configuration, 40A rated current, and a C tripping curve, it effectively safeguards circuits from short circuits and overloads. It boasts a rated breaking capacity of up to 20kA at 220-240V AC and 6000A at 415V AC, conforming to IEC 60947-2 and IEC 60898-1 standards.

Engineered for durability, the iC60N features a robust electrical endurance of up to 10,000 cycles and mechanical endurance of 20,000 cycles. The VisiTrip indicator allows quick fault identification, while the VisiSafe green strip ensures a safe contact opening for maintenance. Its compact design fits standard DIN rails, and it operates reliably across extreme temperatures (-35°C to 70°C). Compliant with industrial and residential standards, this MCB delivers high-level safety, efficiency, and ease of installation.

Specification:

• Product Name: Acti9 iC60N Miniature Circuit Breaker (MCB)

• Poles: 3P (3 protected poles)

• Rated Current: 40A

• Tripping Curve: C

• Breaking Capacity:

  • 20kA at 220-240V AC (IEC 60947-2)

  • 6000A at 415V AC (IEC 60898-1)

• Rated Insulation Voltage: 500V AC

• Rated Impulse Voltage: 6kV

• Electrical Endurance: 10,000 cycles

• Mechanical Endurance: 20,000 cycles

• Mounting: DIN rail, 6 modules (9mm pitch)

• Protection Degree: IP20 (IP40 in enclosure)

• Dimensions: 54mm (W) x 85mm (H) x 78.5mm (D)

• Weight: 0.375kg

• Operating Temperature: -35°C to 70°C

• Standards Compliance: IEC 60947-2, IEC 60898-1
