Description

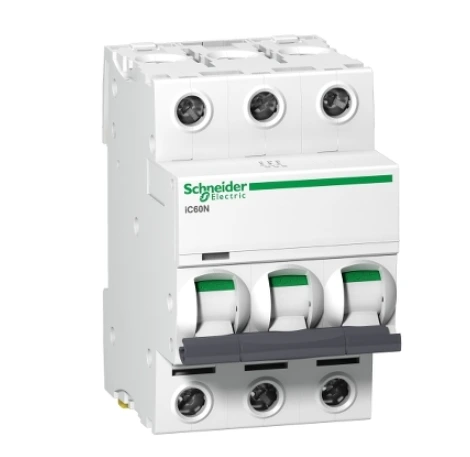

The Schneider Electric Acti9 iC60N A9F44310 is a premium-quality 3-pole Miniature Circuit Breaker (MCB) rated at 10A, designed to ensure maximum protection for low-voltage circuits in industrial, commercial, and residential settings. With a C tripping curve, it effectively handles standard inrush currents from inductive loads like lighting or motors.
This device supports dual standard compliance – EN/IEC 60898-1 and EN/IEC 60947-2 – making it versatile for both residential and industrial electrical systems. It offers excellent short-circuit protection with up to 20kA breaking capacity and includes VisiTrip for easy fault identification and VisiSafe for secure maintenance conditions.
Built with a fast-acting mechanism independent of manual operation, the breaker is engineered for durability with 10,000 electrical and 20,000 mechanical cycles. It easily mounts on a DIN rail, and its compact form factor, IP20/IP40 protection rating, and wide temperature range ensure compatibility across diverse applications.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Miniature Circuit Breaker (MCB) |
| Model | Acti9 iC60N Disbo |
| Reference | A9F44310 |
| Poles | 3P (Three Protected Poles) |
| Rated Current (In) | 10 A |
| Tripping Curve | C Curve |
| Rated Insulation Voltage (Ui) | 500 VAC |
| Breaking Capacity | 10kA (IEC 60947-2), 6kA (IEC 60898-1) |
| Short-Circuit Capacity | Up to 20kA at 240VAC |
| VisiTrip Indicator | Yes |
| VisiSafe Feature | Yes |
| Mounting Type | DIN Rail |
| Width | 54 mm (6 x 9mm pitch) |
| Height | 85 mm |
| Depth | 78.5 mm |
| Net Weight | 0.375 kg |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Degree of Protection | IP20 (device), IP40 (in enclosure) |
| Pollution Degree | 3 |
| Overvoltage Category | IV |
| Operating Temperature Range | -35°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Color | White (RAL9003) |
| Compliance Standards | EN/IEC 60898-1, EN/IEC 60947-2 |
