Description

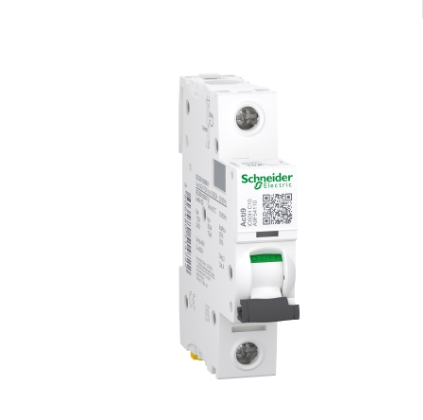

The Schneider Electric Acti9 iC60N A9F74106 miniature circuit breaker (MCB) is designed to deliver reliable circuit protection in both residential and industrial electrical systems. With a rated current of 6A and a C tripping curve, it is ideal for circuits with moderate inrush currents such as lighting and control circuits.
This breaker complies with both EN/IEC 60898-1 (residential) and EN/IEC 60947-2 (industrial) standards, offering a breaking capacity of up to 10kA at 220–240VAC. It ensures effective protection against overload and short-circuit faults, enhancing system safety and reliability.
The unit features Schneider Electric’s VisiTrip indicator, enabling quick identification of the faulted circuit, and the VisiSafe green strip, which provides clear visual confirmation of contact separation for safe maintenance operations.
Built for durability, the Acti9 iC60N provides up to 10,000 electrical cycles and 20,000 mechanical cycles. Its fast closing mechanism, independent of manual operation, ensures consistent performance over time. The breaker is DIN rail mountable and features a compact 18 mm width, making it suitable for modern distribution boards.
With an IP20 protection rating (IP40 in enclosure) and a wide operating temperature range, this MCB is engineered to perform reliably in diverse environmental conditions.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Miniature Circuit Breaker (MCB) |
| Model | A9F74106 |
| Series | Acti9 iC60N |
| Brand | Schneider Electric |
| Number of Poles | 1P |
| Rated Current | 6 A |
| Tripping Curve | C Curve |
| Rated Voltage | 220 – 240 V AC |
| Breaking Capacity (IEC 60947-2) | 10 kA |
| Breaking Capacity (IEC 60898-1) | 6 kA |
| Protection Type | Overload & Short Circuit |
| Insulation Voltage (Ui) | 500 V AC |
| Limitation Class | Class 3 |
| Overvoltage Category | Category IV |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Mounting Type | DIN Rail |
| Width | 18 mm |
| Height | 85 mm |
| Depth | 78.5 mm |
| Net Weight | 0.215 kg |
| Degree of Protection | IP20 (IP40 in enclosure) |
| Pollution Degree | 3 |
| Operating Temperature | -35°C to +70°C |
| Storage Temperature | -40°C to +85°C |
