Description

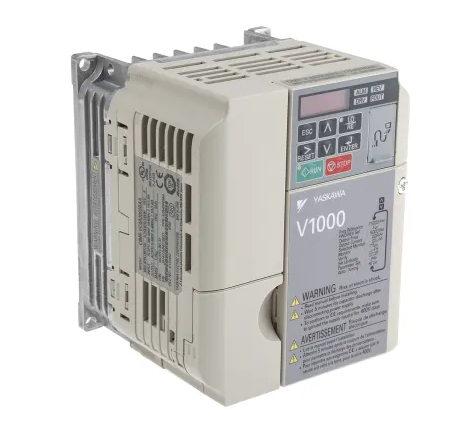

The VZA40P4BAA inverter drive from Omron is part of the trusted V1000 Series, engineered for efficient and precise variable speed control of three-phase motors. With a 0.75 kW power rating and maximum output current of 2.1 A, this drive is ideal for small to medium industrial applications such as conveyors, pumps, fans, packaging machines, and general automation systems.
Designed to operate within a 380–480 V supply range, the V1000 Series delivers stable performance and smooth motor acceleration while reducing energy consumption and mechanical stress. Its output frequency capability of up to 400 Hz provides flexibility for high-speed applications.
The compact DIN rail mount design allows easy integration into control panels, while the IP20 protection rating ensures suitability for enclosed cabinet installations. Supporting standard 4-pole motors, this drive offers dependable operation across a wide temperature range from -20°C to 60°C.
Certified to UL, cUL, and CE standards, the Omron V1000 inverter drive ensures compliance, safety, and long-term reliability in demanding industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Omron |
| Model | VZA40P4BAA |
| Series | V1000 |
| Product Type | Inverter Drive (Variable Speed Drive) |
| Power Rating | 0.75 kW |
| Number of Phases | 3 Phase |
| Supply Voltage Range | 380 – 480 V |
| Maximum Output Current | 2.1 A |
| Output Frequency | Up to 400 Hz |
| Compatible Motor Type | Standard 4-Pole Motor |
| Drive Type | Variable Speed |
| Mount Type | DIN Rail |
| IP Rating | IP20 |
| Operating Temperature Range | -20°C to 60°C |
| Standards/Approvals | UL, cUL, CE |
| Overall Length | 128 mm |
| Overall Width | 108 mm |
| Overall Depth | 99 mm |
