Description

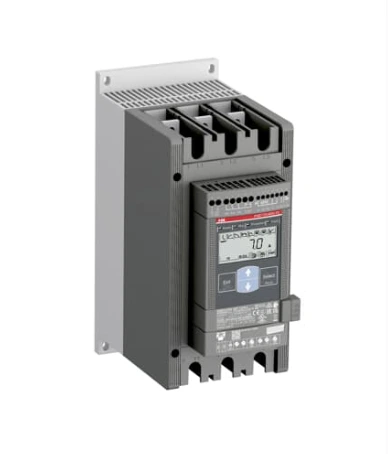

The ABB PSE85-600-70 is a reliable and compact soft starter designed for general-purpose motor applications. With a rated operational current of 85 A and an input voltage range of 208 to 600 V AC, it offers dependable performance for medium-duty motors across various industries.
Featuring two-phase control, the PSE series ensures a controlled soft start and stop via voltage or torque ramp—minimizing mechanical stress and extending equipment lifespan. The unit operates with a control voltage range of 100–250 V AC at 50/60 Hz, ensuring flexible integration in different systems.
The PSE85-600-70 combines simplicity with functionality, making it ideal for applications such as pumps, compressors, fans, and conveyors where compact design, energy efficiency, and ease of use are critical.
Specifications
| Specification | Details |
|---|---|
| Model | PSE85-600-70 |
| Type | Soft Starter |
| Product ID | 1SFA897108R7000 |
| ABB Type Designation | PSE85-600-70 |
| EAN | 7320500400661 |
| Rated Operational Current | 85 A |
| Operating Voltage Range | 208 – 600 V AC |
| Control Voltage Range | 100 – 250 V AC (50/60 Hz) |
| Motor Control Method | Voltage or Torque Ramp (2-phase control) |
| Typical Applications | Pumps, Fans, Compressors, Conveyors |
| Product Net Weight | 2.6 kg |
| Dimensions (W × H × D) | 90 mm × 245 mm × 184 mm |
