Description

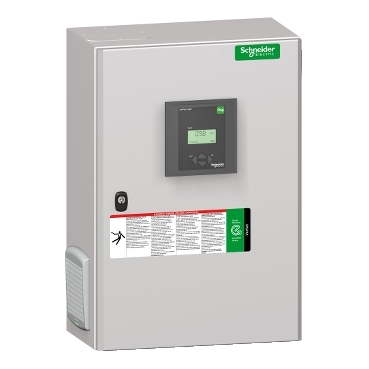

The Schneider Electric PowerLogic VarSet VLVAW0N03504AK Automatic Capacitor Bank is a compact and efficient power factor correction (PFC) solution designed for small-scale industrial and commercial applications. With a reactive power rating of 32kvar, it effectively compensates for inductive loads, helping to reduce energy costs, improve system efficiency, and eliminate utility penalties.
Engineered for low harmonic environments, this capacitor bank supports networks with up to 4% voltage harmonics and 10% current harmonics, ensuring stable and reliable operation. The system automatically adjusts compensation using the intelligent VarPlus Logic controller, optimizing performance based on real-time load conditions.
This model features a wall-mounted enclosure with top cable entry, making it ideal for installations where space is limited. It also includes an integrated circuit breaker, providing added protection and simplifying installation.
With built-in Modbus RS485 communication, the unit integrates seamlessly with EcoStruxure Power, enabling advanced monitoring, analytics, and predictive maintenance. High-quality VarPlus capacitors ensure long service life and compliance with IEC standards.
Its compact size, lightweight construction, and smart features make it a practical solution for facilities seeking efficient and automated power factor correction in a space-saving format.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Product Model | VLVAW0N03504AK |
| Range | PowerLogic (VarSet) |
| Product Type | Automatic PFC Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 32 kvar |
| Rated Voltage | 400 V / 415 V AC, 50 Hz |
| Harmonic Tolerance | Up to 4% voltage / 10% current |
| Mounting Type | Wall Mounted |
| Cable Entry | Top Entry |
| Incomer Protection | Integrated Circuit Breaker |
| Controller | VarPlus Logic Controller |
| Communication | Modbus RS485 |
| Capacitor Type | VarPlus High-Endurance Capacitors |
| Standards & Certification | CE, IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831-1 & 2 |
| Protection Rating | IP31 (Upgradeable to IP54) |
| Height | 650 mm |
| Width | 450 mm |
| Depth | 250 mm |
| Weight | 57 kg |
